SITA 400 DS PLUS Series (50 to 1300 m3/hr) 10BAR Rated full details...

SITA 400 DS PLUS Series (50 to 1300 m3/hr) 10BAR Rated full details...

  • Industrial Range in Stainless Steel 316
  • Uses 400W Low Pressure Amalgam Lamps
  • New Touch Screen Controls
  • Click more details for full specification
  • WRAS Approved - 1905378
Related products:- UV Disinfection - Click to see all Sita UV Systems - Click to see all
Additional info:-

Please call us on +44 (0)1948 710699 for the latest web price on this item

Sita 400 DS Ultra Violet (UV) Systems

Disinfection UV units of 400 DS SERIES use low pressure amalgam lamps. Amalgam lamps have higher lifespan and efficiency than standard low pressure lamps. Lifespan is around 16.000 hrs and these lamps work perfectly with low and high water temperatures. In this Series of UV system SITA uses powerful lamps that will allow, at the same treated flow rate, the use of less lamps and so on easier maintenance. The horizontal configuration, due to the lamps length, makes the maintenance work very easy.

Automatic quartz cleaning system is available on all the models.

The S.I.T.A. 400 DS series UV systems are composed by:
  • Stainless steel reactor that contains the special germicidal lamps
  • Control panel, made in compliance with the CE standard

    Main Application:
    Water Disinfection for:
    - Municipal water
    - Waste water
    - Industrial process water
    - Food & Beverage industry
    - Horticulture

    Technical specification:
    Flow rates: from 50 to 1.400 m3/h (depending on UV-C transmittance value)
    UV-C dose after 14000 hr: 400 J/m2
    Power: from 0,44 kW to 6 kW
    Connections: Flange type
    Lamps: High efficiency low pressure amalgam lamps – 400W
    Lamps lifespan: 14.000 hrs
    Sensor: UV-C selective sensor
    Max Pressure: 10 bars (optional 16 or 25 bars)
    Temperature range: 0 – 50 °C (ask for higher tempe rature)
    UV reactor material: Stainless steel 316L
    Control Panel material: Painted steel – RAL 7035 - Hospitals
    - Hot water
    - Horticulture

    Certification:
    CE, WRAS, GOST

    Technical specification:
    Flow rates: from 20 to 160 m3 /h (depending on UV-C transmittance value)
    UV-C dose after 12000 hr: 400 J/m2
    Power: from 0,44 kW to 6 kW
    Connections: treated or flange type depending on model
    Lamps: High efficiency low pressure amalgam lamps – 200W
    Lamps lifespan: 12.000 hrs
    Sensor: UV-C selective sensor (on PLUS models)
    Max Pressure: 10 bars (optional 16 or 25 bars)
    Temperature range: 0 – 50 °C (ask for higher temperature)
    UV reactor material: AM 24-50 aand 60 Stainless steel 304 (SS 316L optional)
    AM 96-125 and 160 only SS 316L
    Control Panel material: Painted steel – RAL 7035

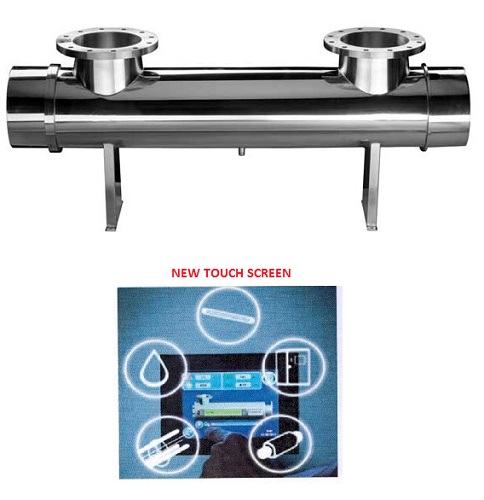

    Stainless steel reactor:

    The UV reactor is totally in stainless steel 316L internally/externally polished; the stainless steel of its
    chemical/physical characteristics is particularly suitable for the treatment of primary waters, and being
    polished also in the internal part it is completely without porosity that could favour the keeping of spores; moreover, being glass polished, the germicidal action of the lamps is increased.
    To make the maintenance and inspection operations easier the chamber is openable at one side.

    Configuration: U shape
    Mounting: horizontal
    Connections: flanges PN 10 (UNI EN 1092 -1)
    UV sensor holder : Stainless steel 316L
    UV sensor: selective sensor (option: DWGV or Ö-Norm Sensor)
    Seals: Silicone and Viton
    Automatic Cleaning system: possible on all the models – optional (RA version)
    Fixing supports standard on all the models (not on UV 400/1 and UV400/2)
    Flow direction: both sides

    Control Panel:


    The electrical control panel supplied is ready for the installation (complete of all the necessary cables). NEW TOUCH SCREEN

    - Steel painted control panel box (RAL 7035) with 2 doors, main switch, cooling fans and UV cube monitor
    - Protection class: IP 54
    - Status messages (5 languages: Italian, English, Spanish, Portuguese, German)
    - Microprocessor control
    - Total hour meter
    - Resettable hour meter
    - Control of each lamp
    - Electrical panel temperature control
    - ON/OFF timer
    - Alarm 220 V NA/NC outlet
    - Remote on/off
    - Alarm Free contact outlet
    - 4-20 mA outlet (optional)
    - UV intensity: W/m2 or %
    - Pre alarm UV intesity
    - Shutdown for high temperature in the UV chamber and in the electrical panel
    - Control of temperature & UV irradiation (pre set alarm threshold)
    - Shut off for flooding
    - Provision for connection with external flow: online flow visualisation, shuttoff in case of no flow, possible shut off for low flow, possible shut off for high flow (optional)
    - Datalog of the flow rate (optional)
    - Datalog of UV irradiance and panel & UV chamber temperature (optional)
    - GSM box for remote monitoring and control with mobile phone (optional)
    - Lamp power regulation (optional)
    - Temperature Range: 5-65°C
