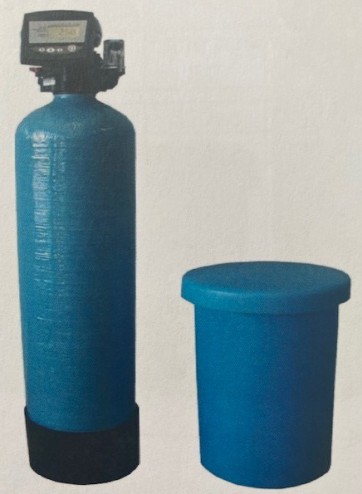

Part of Wrekin Water Softeners commercial range.

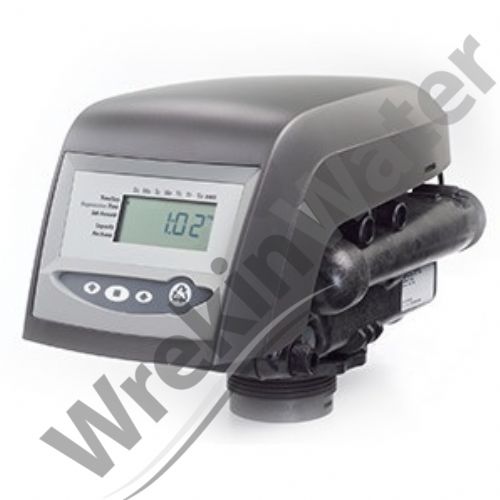

This unit is fitted with a Water Save controller that saves over 40% waste Water from a conventional softener

Technical Specifications

50L - 2.0m3 Service Flow - 8.3m3 Capacity
60L - 2.4m3 Service Flow - 10m3 Capacity
75L - 3.0m3 Service Flow - 12.5m3 Capacity
100L - 4m3 Service Flow - 17.0m3 Capacity

Capacity is calculated at 300 ppm Hardness ( 21°Clark)

This softener is supplied partailly assembled for shipping. Some assembly will be required. All components and instructions will be supplied.

General Conditions for Installation

Connection IN & OUT: 1"
Drain connection: 3/4"
Electrical Rating: 230 VAC 50/60 Hz, 12 VAC Transformer
Power Rating: 3 Watt Average
Minimum inlet pressure : 30 psi (2 bar)
Maximum inlet pressure: 90 psi (6 bar)
Vacuum: no allowance
Average pressure loss (**): 1 bar
Min-max water temperature: 5-35 C

Resin
Type: Strong acid cation resin - softening, food grade quality
