SPECIFICATIONS
Max flow through empty housing: * Approx 76 l/m at 3 bar (42psi)
Min pressure:- Approx 2 Bar (28psi)
Max pressure:- 6.8 Bar
Max water temp:- 20°C Water, 30oC ambient
Inlet / Outlet:- 1'' Bsp female
Housing material:- Polypropylene
Colour:- Blue
Filters cartridges:- 10 inch nominal x 4.5in Diameter. Referred to as BB - Big Blue

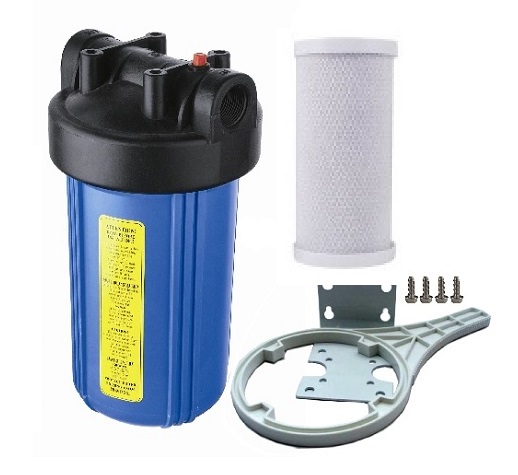

Includes:-
Spanner
Built in pressure relief valve
Metal fixing bracket

Dimensions
Height:- 350 mm (470mm With Bracket)
Width 200mm
Depth:- 200 mm

* Flow rate through housing
The maximum flow rate shows the flow through an empty housing. The flow will decrease
according to the type of cartridge installed and the water supply pressure.
