High levels of nitrates in water are dangerous (legal limit in potable water is 50mg/l). A nitrate reduction system is made up of a high quality vessel filled with nitrate selective resin with a multi-port valve on the top. The nitrate rich water passes over a resin where the nitrate is exchanged for chloride ions. Periodically this nitrate needs to be removed by regenerating with salt. As the nitrate levels vary from month to month a time based regeneration system is recommended.

We assume 50 ppm NO3 for the capacity of this system. (The capacity is the volume of water the unit can treat before it requires regeneration).

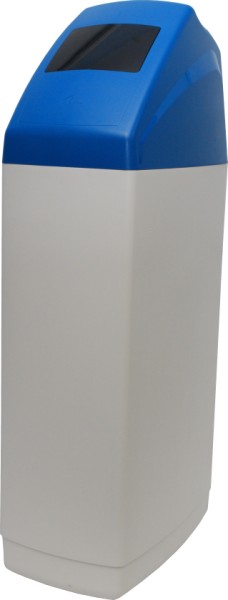

This unit is an automated Timed Controlled unit offering safe nitrate removal from the water supply.

The unit is self cleaning using brine generated from the salt located in the salt bin. Meter controlled allows cleaning cycles to be set automatically

Specification
Common to All
Inlet/Outlet Ports - 3/4in BSP Male
Valve Type - Autotrol 255 with 742 Timer Controlled

Flow Rates/Capacity @ 50ppm of Nitrate
10L = 0.4m3/h/4m3
15L = 0.6m3/h/6m3
22L = 0.9m3/h/8.8m3
25L = 1.0m3/10m3
35L = 1.4m3/14m3
42L = 1.7m3/17m3
50L = 2.0m3/20m3

Dimensions
Softener Height (mm) 1190
Softener Depth (mm) 520
Softener Width (mm) 325

Connections (in/out) (Inch) 3/4in
Drain Connection (Inch) ½

Electrical Supply (V/Hz) 12/50

Depth is cabinet depth. Allow +50mm for connections to valve

Included with all machines as standard

Drain hose and connector 2 mtrs
Overflow Hose 1.5m
Instruction and installation manual

Telephone support is available from a fully qualified installation and service engineer to assist you in every way.
