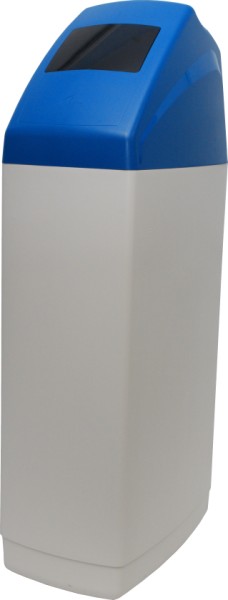

Wrekin Water Softeners ECO30M1-LF softener is ideally suited to larger homes requiring high flow rates, and a high softened water capacity where there is moderate need for Iron and Manganese Removal The industrial quality control valve enables it to be connected to 28mm pipework or above. Port size of 1" male connectors allow use of our 28mm Fixing Kit to make for easy installation.

The electronic control system on this softener meters daily water usage, and will select for itself the ideal regeneration day to ensure economical salt usage with the minimum of waste water.

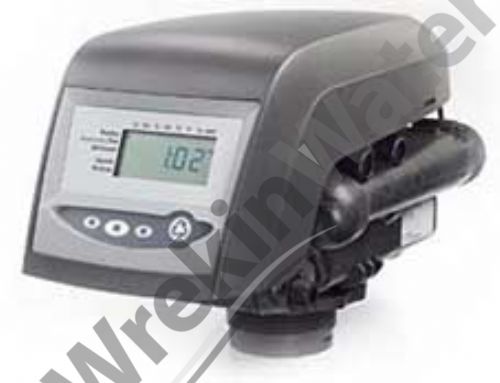

This Softener comes fully assembled and easily installed by a competent plumber. This machine has as standard Logix Digital Control making this machine much easier to programme, whilst the controller gives much more data to get optimum performance from the machine

Machine comes complete with full instructions and Hardness Test Kit. All that is required to set is

Time of Day

Day of Week

Hardness level in PPM


Maximum Flow (L/pm) 85
(G/pm) 18.7

Minimum Flow (L/pm) 3.3
(G/pm) 0.72

Capacity (Ltrs) 5000
@ 300 ppmCaCO³

Regen Waste Water (Ltrs) <100 Ltrs

Salt used per regen (Kg) 4


Minimum operating pressure (bar) 1.175
(psi) 25

Maximum operating pressure (bar) 6
(psi) 85

Pressure Drop @ max flow (bar) 2
(psi) 25
Dimensions
Softener Height (mm) 1190
Softener Depth (mm) 520
Softener Width (mm) 325

Connections (in/out) (Inch) 1”

Drain Connection (Inch) ½

Electrical Supply (V/Hz) 12/50

Telephone support is available from a fully qualified installation and service engineer to assist you in every way.


** Our Products are assembled in the UK. Wherever possible we source components from the UK or the EU if no UK source is available.

Components are sourced from certified suppliers and key components are WRAS approved wherever possible REF: 1405367 & 1210048 are some examples
