*Incl. standard delivery to all UK Mainland
Postcodes. (Excl. Highlands)
Code
Details
*Price Incl VAT
HF20BB

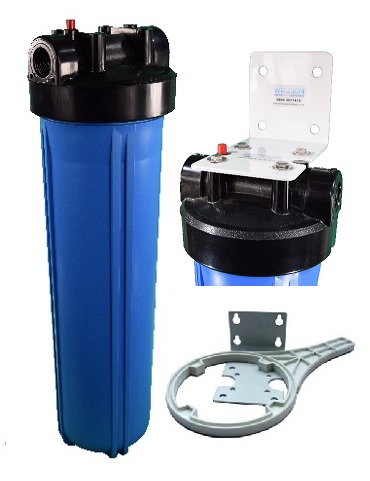

High Flow 20in Jumbo (BB) housing with Pressure Release, Bracket and Spanner
£99.60 (£83.00 Ex VAT)
*Incl. standard delivery to all UK Mainland
Postcodes. (Excl. Highlands)
If you are ordering from outside the UK, please call us on +44(0)1948 710699 for our most competitive shipping rateProduct details:-
High flow filter housing with 1” inlet and outlet ports accepts any 20” High Flow BB cartridge. The unit has an air release mechanism to relieve water pressure when changing cartridges. A support bracket is supplied as standard. It is recommended that isolating valves are fitted either side of the unit so that the supply of water to the housing may be turned off when a filter change is required. The installer needs to supply the fittings MI 1" x 22mm or 1" x 28mm Couplers for connection to adjoining pipework. Fit on cold water lines only. Protect from freezing.
SPECIFICATIONS Max flow through empty housing: * Approx 97 l/m at 3 bar (42psi) Min pressure:- Approx 2 Bar (28psi) Max pressure:- 6.8 Bar (100 psa) Max water temp:- 20oC Water, 30oC ambient Diameter:- 182 mm Height:- 650 mm Inlet / Outlet:- 1'' BSP female Housing material:- Polypropylene Colour:- Blue Filters cartridges:- 20 inch nominal x 4.5in Diameter. Referred to as BB - Big Blue Includes:- Spanner Built in pressure relief valve Metal fixing bracket with Screws
* Flow rate through housing The maximum flow rate shows the flow through an empty housing. The flow will decrease according to the type of cartridge installed and the water supply pressure.
